Sverchok
Stub: This article needs expansion.
Description
Sverchok is a [Blender add-on](/categories/blender-add-on/). Sverchok is a parametric tool for architects and designers for [Blender](/blender/) and [FreeCAD](/freecad/). You can use it to program objects' model geometry without knowing any programming languages. Sverchok has been inspired by Grasshopper from [Rhino 3D](/rhinoceros-3d/) and it uses a similar node-based visual programming principle. Developers are working to bring these feature to free/libre software.
Sverchok has nodes that interact with other free/libre software projects:
There is currently development on letting Blender handle solids via Sverchok and FreeCAD.
Wiki Tutorials
- Blender Topo Mesh2Contours - Exporting dxf contours from Blender topo mesh
- Blender Topo Mesh2XYZ - Exporting csv with xyz values from Blender topo mesh for import into Revit or Archicad
- Blender 2D dxf to ifc - Generating ifc objects from labeled 2D drawing for collision checks
External Tutorials
- Read the full Sverchok documentation and start with the introduction to Sverchok
- Getting started with Sverchok for 3D modeling with Blender 2.8 from blender3darchitect.com
- Sverchok Nodes – Quick Start with Blender from blender-addons.org
- Resources list on Sverchok github
- Code Plastic - Learning Sverchok Book for learning Sverchok -Parametric and computational design tool for Blender 2.79
- Classical Grasshopper algorithms with Sverchok great way to switch from Rhino/Grasshopper
See also
- Ladybug Tools has similar programming nodes
- FreeCAD has begun working with Sverchok
- Sverchok is designed for Blender
- Sverchok includes nodes for working with Topologic

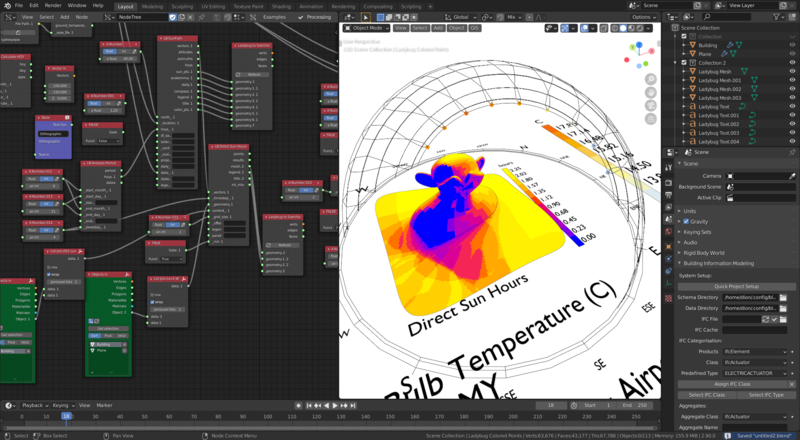

- Sverchok includes re-implementations of Ladybug Tools nodes
